OEM/10 HP Honda single phase 3 cycle and Ingersoll Rand/Vertical two-stage air compressor

In the next series of articles we will learn more about different auto glass parts and tools from a variety of manufacturers. We will learn about the specifications of these tools and materials. We will also learn about the benefits of these tools, which will include air blow guns,  compressors, drills, hammers, pump, pumps, piping, and sandblasters. The tools will include anything that you can think about, including auto glass and replacement tools.

Let's get started

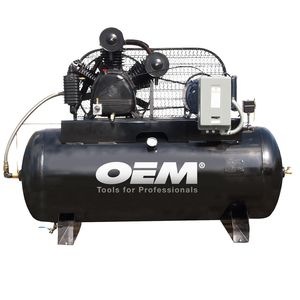

OEM/10 HP Honda single phase 3 cycle

This compressor is cast iron with 3 cylinders and a two stage pump with head unloader.

The compressor has an Industrial duty 10 single phase 230 V motor, is ASME certified 120 Gallon horizontal tank, is Easy to use, has a Low oil switch shut-off switch

Weight: 975.0 lbs
120 Gal.
10 HP
Amperage (A): 90
CSA Certified: No
Carrying System: Stationary
Color / Finish: Black
Compressor Design: Horizontal (Stationary)
Compressor Uses: Air Tools
Cord Length (ft): 6
Cordless / Corded: Corded
ETL Listed: No
Full Roll Cage: No
Height (in): 55
Horsepower (hp): 10
Length (in): 80
Lock-on Switch: No
Maximum Pressure Rating (psi): 175
Motor Type: Belt Driven
Nozzle Fitting Size: 1/2 In.
Operating Position: Horizontal
Package Contents: Compressor, Manual
Regulator: No
Side Handle: No
Switch Type: Magnetic
Tank Capacity (gal): 120
Tank Configuration: Single
Tank Material: Cast Iron Cylinder
Tank Pressure Gauge: No
Type of Air Compressor Tank: Stationary
Voltage Rating: 230
Wheeled: No

Width (in): 40

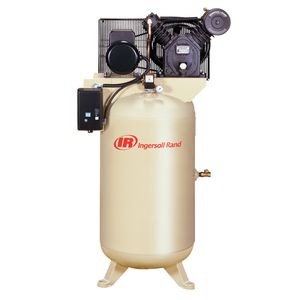

Ingersoll Rand/Vertical two-stage air compressor

Durable cast-iron, two-stage en bloc design, 175 PSI maximum operating pressure, 100% continuous duty for tough applications, extended pump life for years of trouble-free service, enclosed unit offers reduced noise levels as low as 69DBA, factory-mounted and wired motor starter, automatic start/stop control, Asme coded receiver tank, oil sight glass and totally enclosed belt guard, CFM- 16.8 at 175 PSI
Product Details

Weight: 525.0 lbs
80 Gal.
5 HP

Description: 5 HP, 80 gallon, vertical, two stage
